PRODUCTS

Shuttle & Server®

High mix and low volume, just-in-time, frequent cycles….
As these trends rapidly expand, increased efficiency has become a major focus.
The IHI Shuttle & Server allows multiple shuttles to simultaneously load and unload at high speeds in response to various requests.
We pride ourselves in the unrivaled assortment of cargo as well as efficiency in sorting, picking, and replenishing.
Used as one of our key systems which takes a quick and dynamic approach to respond to the ever-diversifying needs of users.

Multiple shuttles for speedy loading/unloading

The multiple shuttles traveling at high speeds load and unload simultaneously, demonstrating outstanding processing capabilities.
The Type I shuttles run on every level of the racks.
The Type II shuttles feature a climbing function and operate across several levels of the racks.

The shuttles operate on every level of the racks in an aim to ensure the increased speed of the picking process.

The shuttles designed to operate across multi-levels help to achieve outstanding picking capabilities and cost-efficiency.

Excellent picking capabilities effective in reducing space

The Shuttle & Server combines the excellent loading/unloading capabilities of multi-level rotary racks with the outstanding storage capabilities of an automated warehouse with stacker cranes. The simple layout helps minimize dead space, promising a great success in space-saving.

Energy savingLow noise model

The shuttle's body is very lightweight; thus significantly reducing electricity costs compared to automatic warehouses of the same scale. The drive unit is also very small; thus aiding a quiet working environment.

Adroit Driving Mode

With online, remote, and manual operating modes and methodically mounted circuit boards on each device; the system is engineered to operate not only under normal use but also during emergency processing. In addition, maintenance passages can be installed inside the racks to allow workers to walk on the paths of the shuttles. This enables the unloading of cargo during emergencies such as system failures.

Compatible with multiple cargo shapes

The featured shuttle fork is a multi-purpose type compatible with various shapes of cargo to accommodate the flexibility of the system. Moreover, the storage locations are automatically allotted by the size of the cargo to ensure storage efficiency.

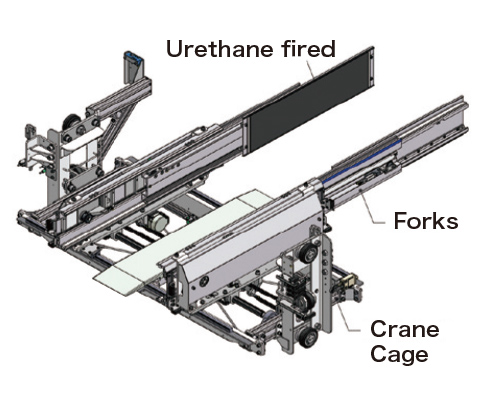

Forks compatible with multiple cargo shapes

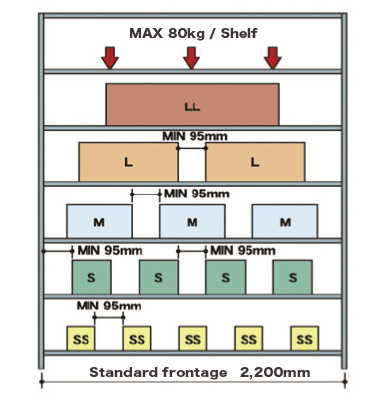

Racks compatible with multiple cargo shapes

Examples

Cargo Assorting and Sorting Type

Picking and Replenishing Type

Options

Container Carry Stacker

Container Cage Stacker

These extensions are compatible with IHI's very own self-loading devices.

Compatible with various type of loads and environment
